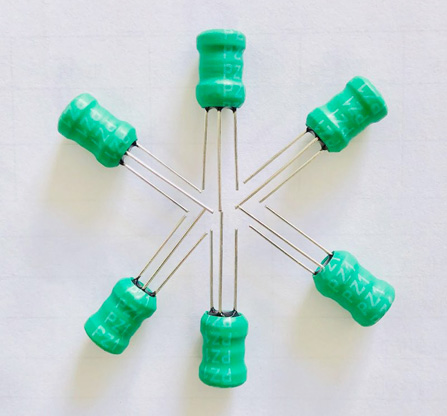

插件电感(Radial inductor)




    此种电感体积小,分布电容小,具有良好的频率特性,能获得较高的Q值和射频(SRF),特殊的结构,能承受较高的空截电流,因此深受客户欢迎.



1.
工作条件

   1.额定电压...................................................................................250V DC

   2. 温升...........................................................................................45℃

   3.温度范围..............................................................................................-25℃ to +85℃

  4.PLN脚承受最小拉力 ...................................................................................0.5Kg MIN






2. 材料组成

   1.磁芯

   2.外层封装凡立水或PVC套管或UL套管.

   3.漆包线

   4.引脚使用镀锡铜线


3形状及尺寸

                                       (1)尺寸 (单位: mm)



                                            (2)接线图






DIMENSION


(MAX)

B
(MAX)

C
(MIN)

D
(MAX)


(+0.05)

F
(REF)








FORM





PK0406 TYPE

5.0

8.0

20.0

3.0

0.50

2.0

PK0608 TYPE

7.0

10.0

20.0

3.0

0.65

3.0

PK0810 TYPE

9.0

12.5

20.0

3.0

0.65

5.0

PK1012 TYPE

13.0

14.0

20.0

3.0

0.80

6.0

              PS:我们也可以提供其它尺寸之磁芯供客户选择

4. 规格说明


PK
06
08
 L
470
K
(1)
(2)
(3)
(4)
(5)
(6)

(1) 规格类型


 (4) 外层包封 (PVC=V,UL=L)

(2) 磁芯外径


 (5) 电感量

(3) 磁芯长度


 (6) 电感量公差(J=+5%,K=+10%, M=+20%)


5.
PK0406(0406类同0455

PART NO.

INDUCTANCE
@ 1KHz
(uH)

INDUCTANCE
TOLERANCE

QUALITY
FACTOR(MIN)

TEST
FREQUENCY
OF Q (MHz)

DC
RESISTANCE
() MAX

RATED DC
CURRENT
(mA) MAX

PK0406V/L-1R0M

1.0

M(+20%)

130

7.96

0.035


2000


PK0406V/L-1R2M

1.2

100

0.058


1950


PK0406V/L-1R5M

1.5

0.075


1900


PK0406V/L-1R8M

1.8

0.110


1800


PK0406V/L-2R2M

2.2

0.120


1750


PK0406V/L-2R7M

2.7

0.125


1680


PK0406V/L-3R3M

3.3

0.130


1500


PK0406V/L-3R9M

3.9

0.135


1450


PK0406V/L-4R7M

4.7

0.140


1320


PK0406V/L-5R6M

5.6

0.145


1230


PK0406V/L-6R8M

6.8

0.15


1150


PK0406V/L-8R2M

8.2

0.16


1100


PK0406V/L-100M

10



80



2.52

0.23


1000


PK0406V/L-120K

12



K(+10%)

0.24


970


PK0406V/L-150K

15

0.25


920


PK0406V/L-180K

18

0.33


860


PK0406V/L-220K

22

0.45


800


PK0406V/L-270K

27

0.50


710


PK0406V/L-330K

33

0.70


660


PK0406V/L-390K

39

70

0.74


600


PK0406V/L-470K

47

0.76


550


PK0406V/L-560K

56



K(+10%)

50

2.52

0.80


500


PK0406V/L-680K

68

0.90


470


PK0406V/L-820K

82

0.95


430


PK0406V/L-101K

100

45

0.796

1.00


400


PK0406V/L-121K

120

1.10


370


PK0406V/L-151K

150

65

1.30


350


PK0406V/L-181K

180

1.50


320


PK0406V/L-221K

220

1.80


300


PK0406V/L-271K

270

50

1.90


275


PK0406V/L-331K

330

2.20


250


PK0406V/L-391K

390

2.70


220


PK0406V/L-471K

470

3.60


200


PK0406V/L-561K

560

4.20


190


PK0406V/L-681K

680

4.60


170


PK0406V/L-821K

820

5.70


155


PK0406V/L-102K

1000

90

0.252

6.70


150


PK0406V/L-122K

1200

8.20


140


PK0406V/L-152K

1500

80

13.00


120


PK0406V/L-182K

1800

15.00


110


PK0406V/L-222K

2200

17.00


100


PK0406V/L-272K

2700

19.00


90


PK0406V/L-332K

3300

70

26.00


83


PK0406V/L-392K

3900

30.00


76


PK0406V/L-472K

4700

65

45.00


70


PK0406V/L-562K

5600

48.00


62


PK0406V/L-682K

6800

56.00


56


PK0406V/L-822K

8200

62.00


52


PK0406V/L-103K

10000

45

0.079

72.00


47


PK0406V/L-123K

12000

80.00


40


PK0406V/L-153K

15000

120.00


35


PK0406V/L-183K

18000

135.00


30


PK0406V/L-223K

22000

160.00


24


PK0406V/L-253K

25000

180.00


20


6. PK0608

PART NO

INDUCTANCE
@ KHz
(uH)

INDUCTANCE
TOLERANCE

QUALITY
FACTOR
(MIN)

TEST FREQUENCY
OF Q (MHz)

DC
RESISTANCE
() MAX

RATED DC
CURRENT
(mA) MAX

PK0608V/L-1R0M

1.0

M(+20%)



60



7.96

0.20

300

PK0608V/L-1R2M

1.2

0.25

300

PK0608V/L-1R5M

1.5

0.25

300

PK0608V/L-2R2M

2.2

0.25

300

PK0608V/L-2R7M

2.7

0.30

300

PK0608V/L-3R3M

3.3

0.30

300

PK0608V/L-3R9K

3.9



K(+10%)

0.30

300

PK0608V/L-4R7K

4.7

0.35

300

PK0608V/L-5R6K

5.6

0.35

300

PK0608V/L-6R8K

6.8

0.40

300

PK0608V/L-8R2K

8.2

0.40

300

PK0608V/L-100K

10

0.45

300

PK0608V/L-120K

12

2.52

0.50

200

PK0608V/L-150K

15

0.55

200

PK0608V/L-180K

18

0.60

200

PK0608V/L-220K

22



70

0.65

200

PK0608V/L-270K

27

0.75

200

PK0608V/L-330K

33

0.85

200

PK0608V/L-390K

39



60

0.90

200

PK0608V/L-470K

47

1.00

200

PK0608V/L-560K

56

1.20

200

PK0608V/L-680K

68

55

1.30

200

PK0608V/L-820K

82

50

1.50

200

PK0608V/L-101K

100

45



0.796

1.60

200

PK0608V/L-121K

120

65

1.68

100

PK0608V/L-151K

150

1.85

100

PK0608V/L-181K

180

60

2.10

100

PK0608V/L-221K

220

55

2.30

100

PK0608V/L-271K

270

50

2.75

100

PK0608V/L-331K

330


4.68

50

PK0608V/L-391K

390

6.00

50

PK0608V/L-471K

470

6.50

50

PK0608V/L-561K

560

8.50

50

PK0608V/L-681K

680

9.00

50

PK0608V/L-821K

820

9.60

50

7. PK0810

PART NO.

INDUCTANCE
@ 1KHz
(mH)

INDUCTANCE
TOLERANCE

QUALITY
FACTOR
(MIN)

Q. TESTING
FREQ
(MHz)

DC
RESISTANCE
() MAX

RATED
DC
CURRENT
(mA)

PK0810V/L-102K

1.0

K (+10%)

65

0.252

6.0

450

PK0810V/L-122K

1.2

140

6.0

PK0810V/L-152K

1.5

130

7.0

400

PK0810V/L-162K

1.6

150

10

PK0810V/L-182K

1.8

10

PK0810V/L-222K

2.2

12

360

PK0810V/L-272K

2.7

140

14

PK0810V/L-302K

3.0

15

280

PK0810V/L-332K

3.3

16

PK0810V/L-392K

3.9

130

18

PK0810V/L-472K

4.7

120

20

260

PK0810V/L-562K

5.6

22

PK0810V/L-682K

6.8

110

29

PK0810V/L-752K

7.5

30

240

PK0810V/L-822K

8.2

100

30

8. PK1012

PART NO.

INDUCTANCE
@ 1KHz
(mH)

INDUCTANCE
TOLERANCE

QUALITY
FACTOR
(MIN)

Q.
TESTING
FREQ
(MHz)

DC
RESISTANCE
) MAX

RATED
DC
CURRENT
(mA)

PK1012V/L-103K

10

K(+10%)

140

0.796

12

280

PK1012V/L-123K

12

13

PK1012V/L-153K

15

18

PK1012V/L-183K

18

130

25

PK1012V/L-223K

22

30

240

PK1012V/L-273K

27

35

PK1012V/L-333K

33

110

40

200

PK1012V/L-393K

39

50

140

PK1012V/L-473K

47

50

PK1012V/L-563K

56

100

65

PK1012V/L-683K

68

80

70

120

PK1012V/L-823K

82

65

85

PK1012V/L-104K

100

60

100

9. PK3W


PK3W 類





DIMENSION

A
MAX

B
MAX

C
MAX

D
MAX

E
+0.05

F
+1.0

TYPE





PK3W 1012

13

14

15

3

0.65

6

PK3W 1016

13

18

15

3

0.65

6

PK3W 1415

18

19

15

3

0.80

6



PART NO.

TURNS RATIO

INDUCTANCE
@ 1KHz
(mH)

DC
RESISTANCE
()

RATED DC
CURRENT
(mA)

FERRITE CORE
Ui/WORKING
FREQ

PK3W1012V/L-192:1920

192T:1920T

170+20%

220 MAX

140

1500/0.01-0.5 MHz

PK3W1016V/L-310:1650

310T:1650T

150+20%

170 MAX

160

1500/0.01-0.5 MHz

PK3W1415V/L-300:800

300T:800T

35+20%

35 MAX

200

1500/0.01-0.5 MHz

10. PK0608类包装外视尺寸

DIMENSIONS SPECIFICATION                                                    UNIT:mm

P

P0

d

F

D0

H

W

12.7+1.0

12.7+0.3

0.65

5.0+0.8

4.0+0.3

16.0+1.0

18.5+1.0-0.5

W0

W1

W2

t

h



12.0MIN

9.0+0.8

2.0MAX

0.7+0.3

0.5+0.2
